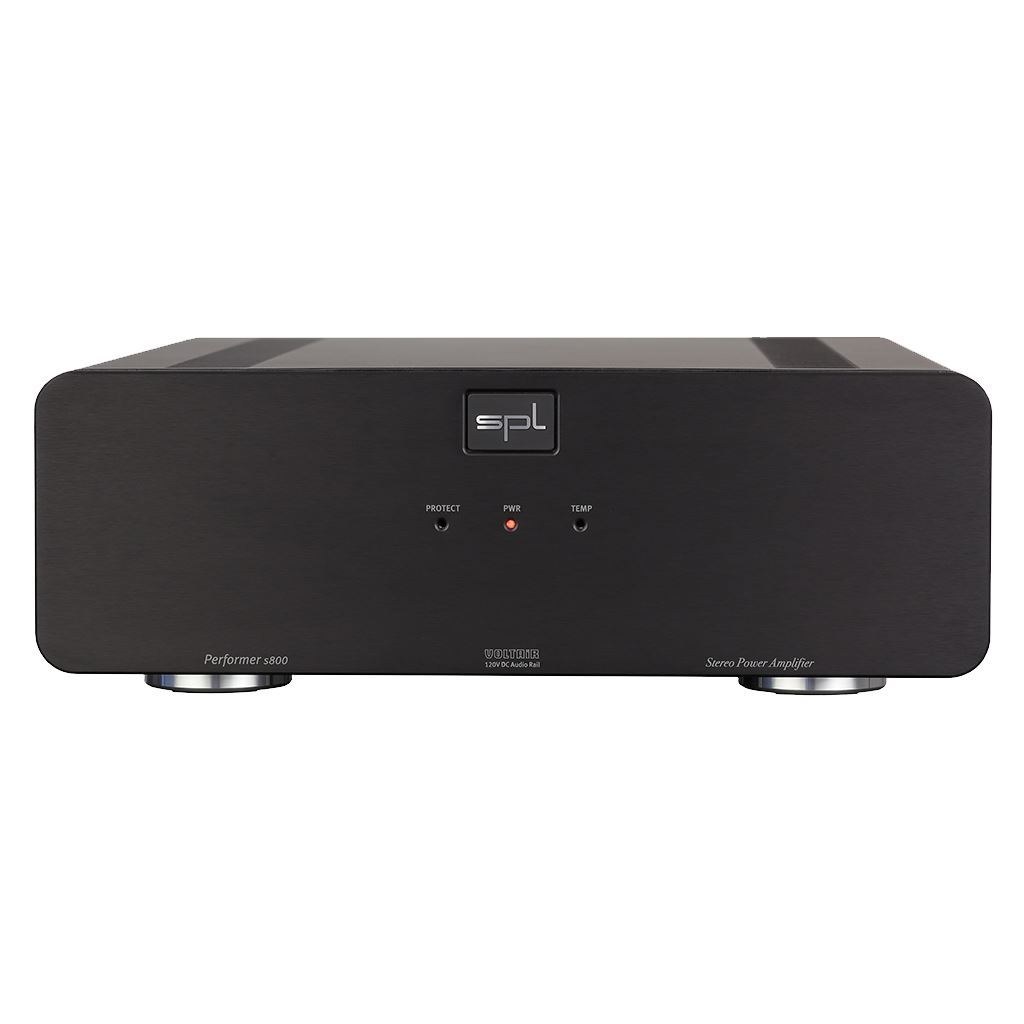

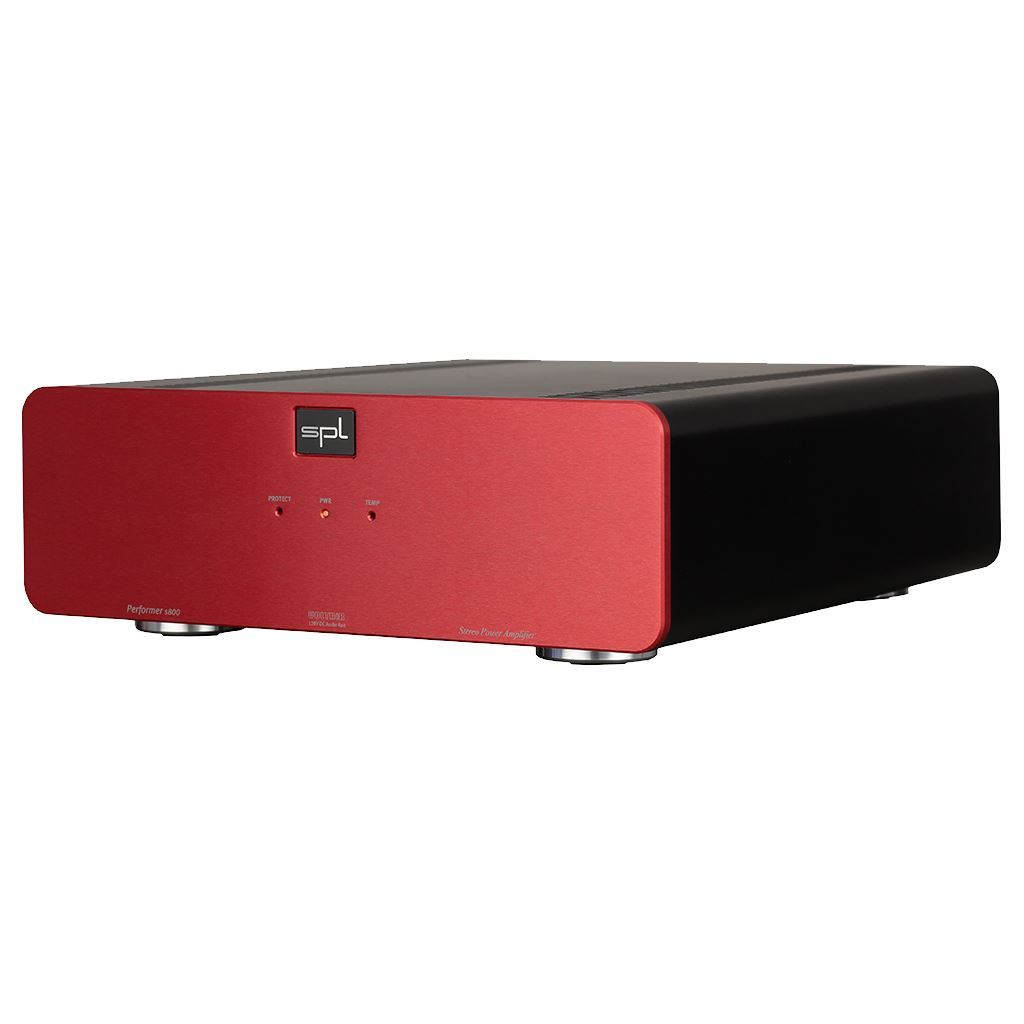

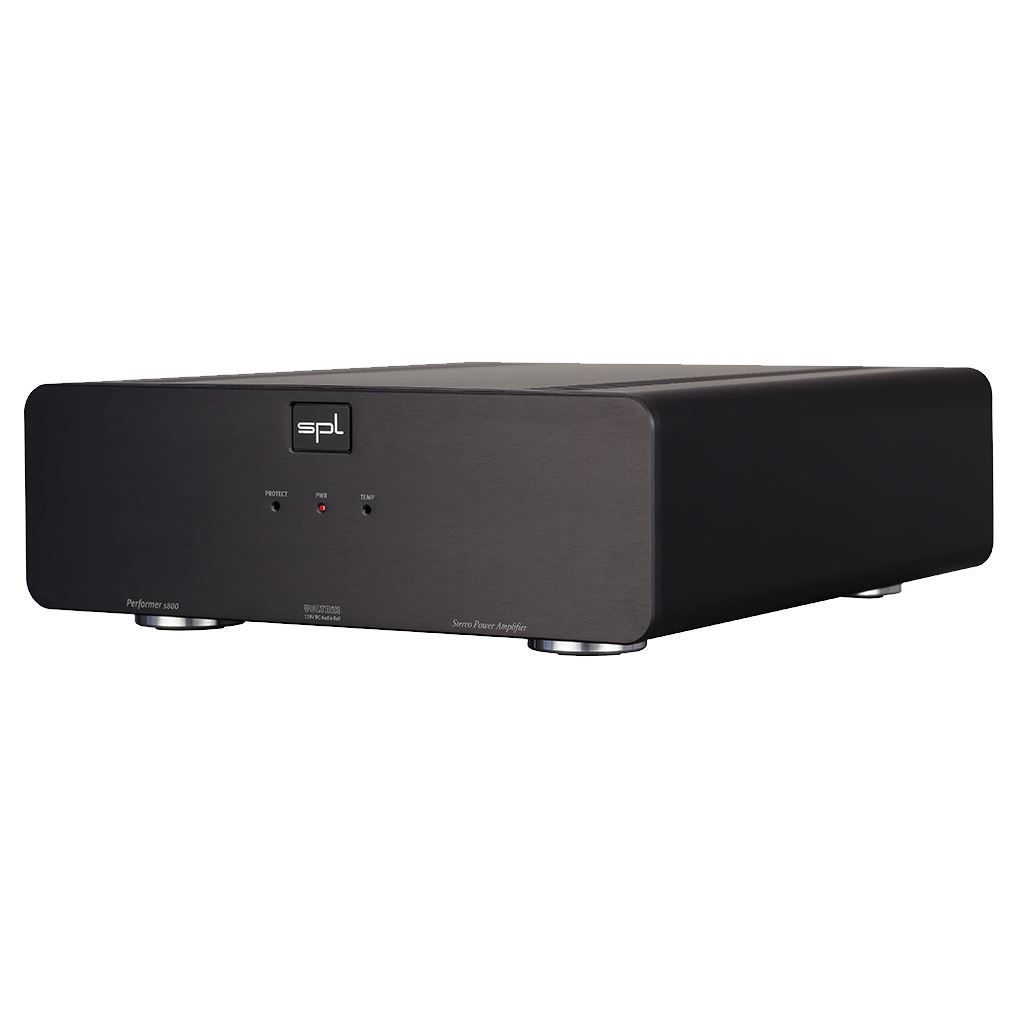

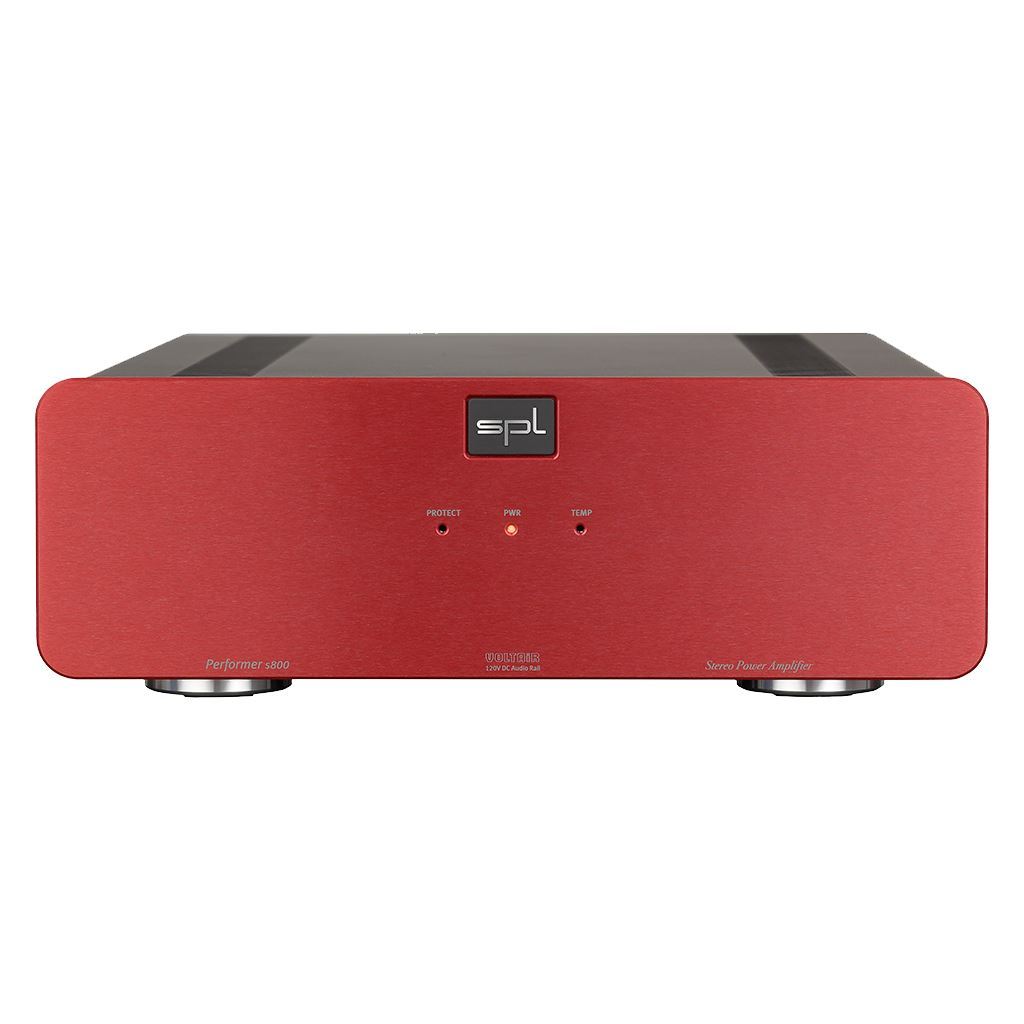

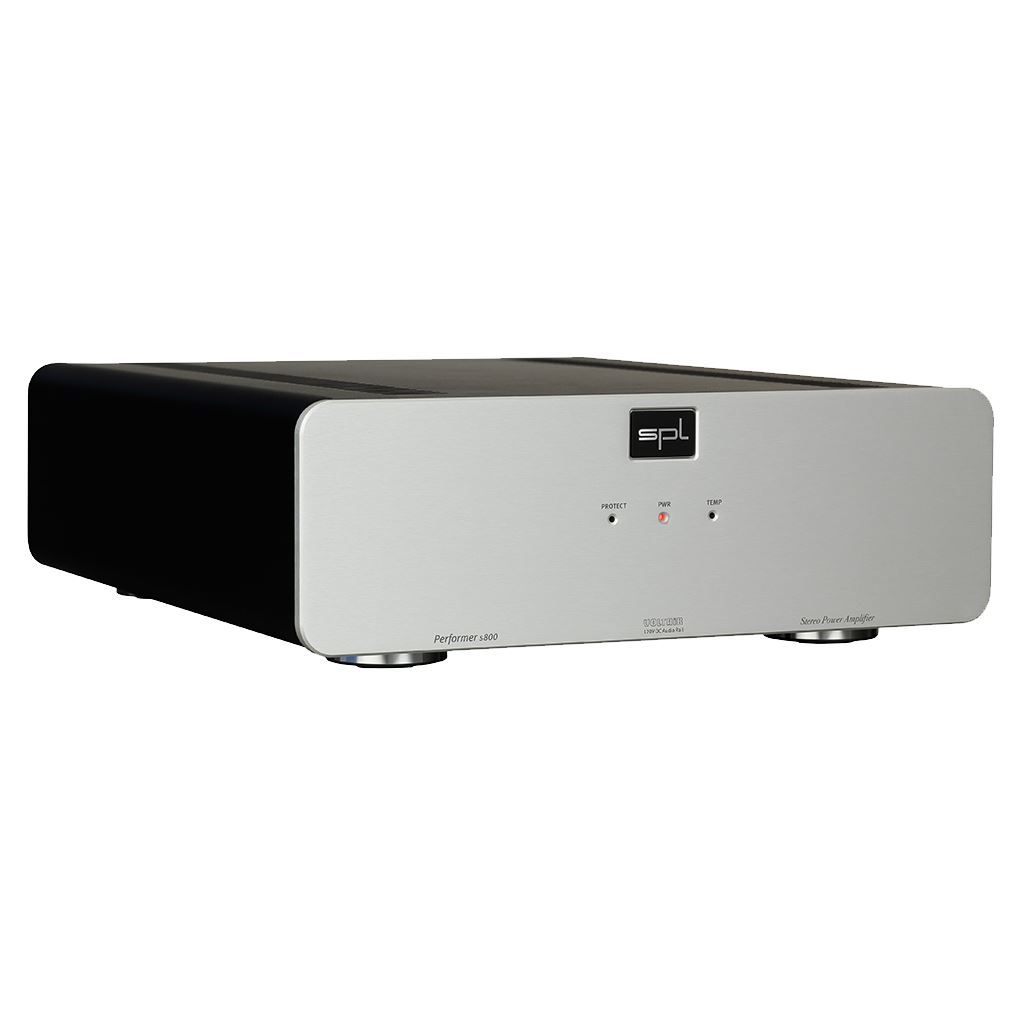

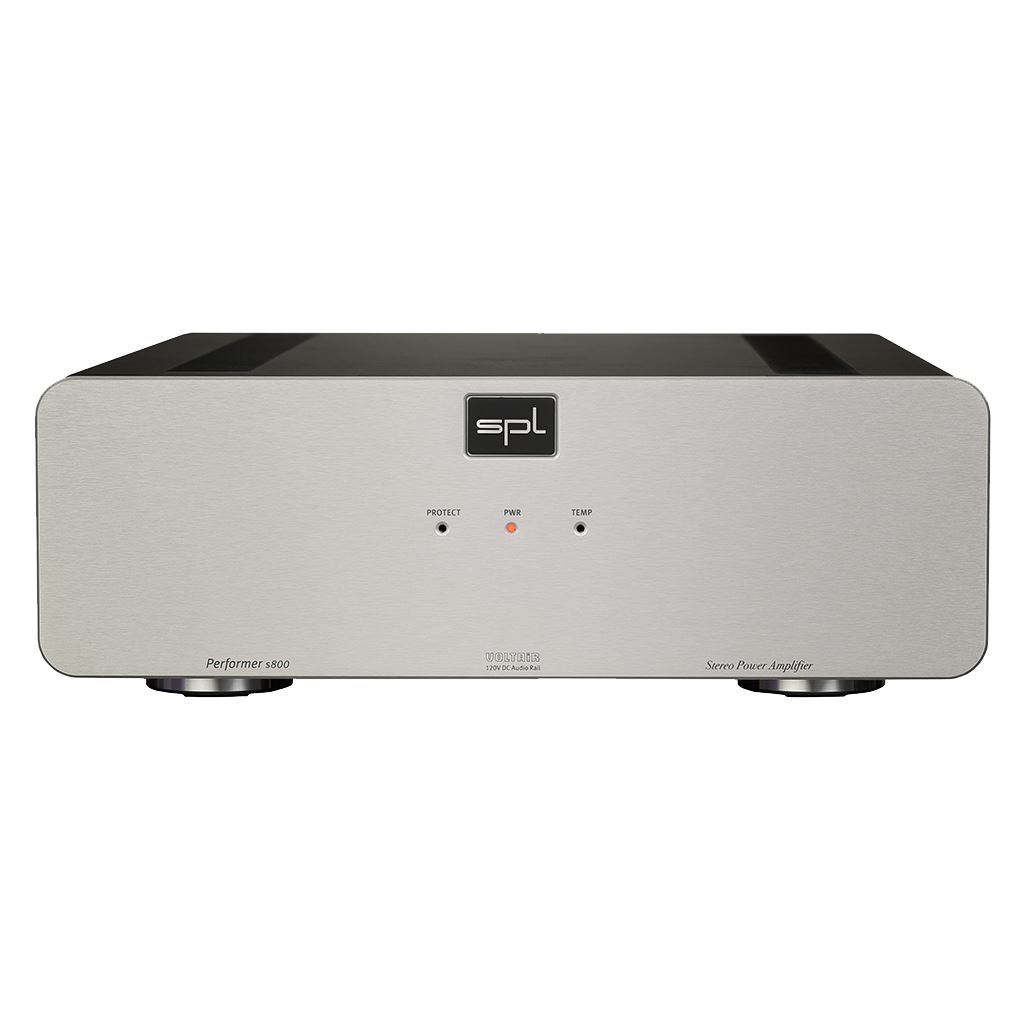

SPL Performer s800 Stereo Power Amp
Regular price $4,299.00
Free Shipping
365 Day Returns
The SPL Performer s800 is a stereo power amplifier that delivers 2 x 285 W to 4 ohms loudspeakers. In bridge mode it delivers 450 W into 4 or 8 ohms.
The technical basis of all Professional Fidelity units is SPL’s proprietary 120 V Rail Technology, which we also call VOLTAiR technology. The name makes reference to the unequaled high voltage of 120 V (+/-60 V DC) and the huge dynamic range of over 140 dB that goes with it.
*Headphones.com is very pleased to announce that you have even more options to pay for your SPL Performer s800 Stereo Power Amp! Now when you hit the Pay with Crypto button, you have the option to pay with cryptocurrencies like NANO, Bitcoin, Litecoin, Ethereum and more! We are very excited to able to give you these options now and for the future!*
General
- Output impedance
- defined by connected device
- Crosstalk
- -110 dB (@1 kHz)
- Loudspekaer Outputs
- 2 pairs binding posts with ø4mm cable hole (screwable) and banana plug; fully encapsulated
- Output Power
-
2x 285 W RMS into 4 ohms
2x 185 W RMS into 8 ohms
1x 450 W RMS into 8 ohms in bridge mode
- Output Voltage
-
Stereo
74 V Peak-to-Peak
35 V RMS
Bridge
180 V Peak-to-Peak
86 V RMS
- Output Impedance
-
Stereo
0.031
20 Hz to 20 kHz
Bridge
< 0.043
20 Hz to 20 kHz
- Damping Factor
-
Stereo
300
20 Hz to 20 kHz
at 8 ohms
Bridge
> 190
20 Hz to 20 kHz
at 8 ohms
- Frequency Response
-
9 Hz to 100 kHz +0(–0.03 dB)
< 9 Hz to 200 kHz +0( –3 dB)
- Signal-To-Noise Ratio
-
> 118 dB (wide-band, unweighted, referred to full power output)
> 123 dB (A-weighted)
- Gain
-
Stereo
26 dB
Bridge
32 dB
- Total Harmonic Distortion (THD)
-
< 0.03 % at 1 kHz (@ 185 W, 8 ohms)
< 0.19 % at 20 kHz (@ 185 W, 8 ohms)
< 0.011 % at 1 kHz (@ 450 W, 8 ohms)
< 0.12 % at 20 kHz (@ 450 W, 8 ohms)
Line Inputs & Line Outputs
- Neutrik XLR, balanced, Pin 2 = (+)
-
Input impedance
10 k ohms
Input trimming
0 dB to -5.5 dB in 0.5 dB steps
Input sensitivity
+6 dBu
Power Supply
- Mains voltage (switchable)
-
230 V AC / 50 Hz
115 V AC / 60 Hz
- Fuses
-
230 V
T 4 A
115 V
T 8 A
- Power consumption
- max 900 VA
- Idle power consumption
- 40 W
